MF Serie – Conventional Fire Alarm

Our Conventional Fire Alarm System is designed for maritime environments, offering reliable fire detection and alert capabilities. Constructed with durable materials able to be implemented for multiple zones. Its possible to choose out of different versions that span from a single zone up to 12 zones.

Product Certification

Weelmark

contact sales

Request information

Stefan Meun-Visser

+31 6 13 73 87 76

want to know more about the MF Serie – Conventional Fire Alarm

Ask Stefan Meun-Visser

More about the MF Serie – Conventional Fire Alarm

Our Conventional Fire Alarm System series is engineered specifically for the demanding conditions of maritime environments, combining robust performance with intuitive operation. Designed to safeguard critical areas such as engine rooms, cabins, and control spaces, these systems offer reliable fire detection and early alert capabilities when it matters most.

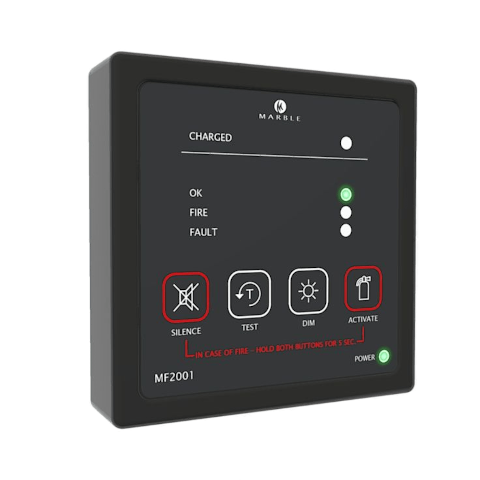

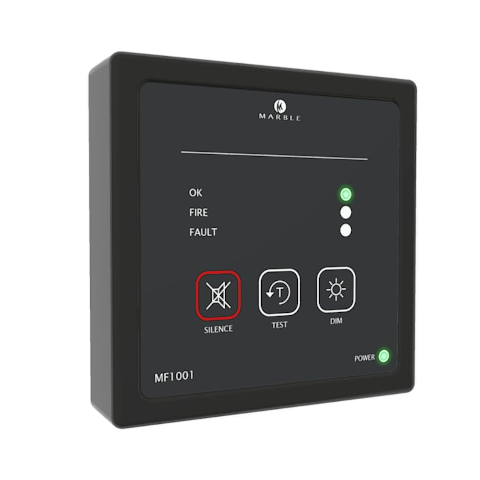

Whether your vessel requires a single-zone solution or a more complex setup with up to 12 independent zones. From compact local indicators like the MF1000 and MFA1000, to full control panels like the MF5004, MF5008, and MF5012, each unit is built using high-quality, corrosion-resistant materials and offers clear status indicators and simple test/reset functions.

Advantages

  • Zone-based fire detection (1 to 12 zones depending on model)
  • Visual and audible indicators for Fire, Fault, and Power

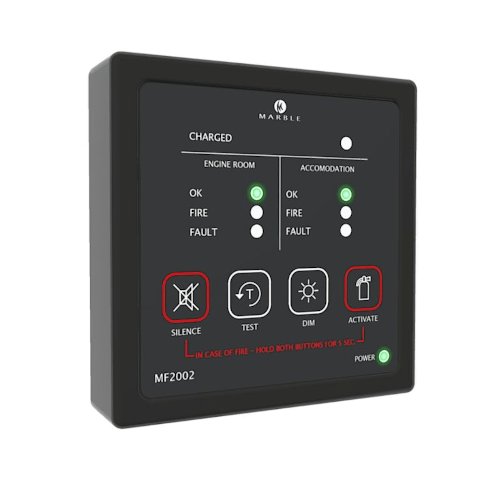

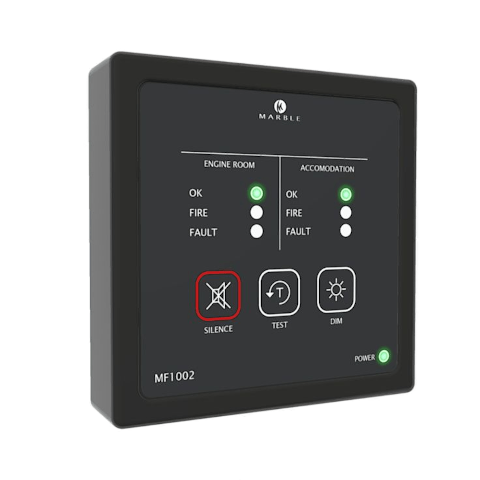

  • Dedicated engine room and accommodation monitoring on dual-zone units
  • Emergency activation via dual-button hold on actuator models (MFA-series)
  • User-friendly interface for quick diagnostics and routine checks
  • Fully approved to European standards EN54-2 & 4, Fire Detection Alarm Systems – Control and indication Equipment & the Marine Equipment Directive.

Features

  • Construction 1.2mm sheet steel,IP30
  • Enclosure finish Interpon Radon, Silver Grey, Epoxy Powder Coat
  • Main Voltage Supply 230V AC 50Hz
  • Mains supply Fuse 1.6A 250V
  • Power Supply DC rating 28V 3A
  • Aux 24V supply Fused at 500mA
  • Battery (24 hour standby) 3.2Ah 12V (2 per panel)(non-networked)
  • Temperature Range -5C to +40C max RH 95%
  • Fault contact rating 30V DC 3 amp
  • Fire contact rating 30V DC 3 A
  • Sounder output rating Fused at 500mA each
  • Detection Loop 400mA output
  • Detector Protocol Conventional
