The MS2006 is a wall-mounted Modbus slave device designed as an extension for alarm systems, particularly in Unmanned Machinery Space (UMS) ship installations. It supports multi-drop RS485 communication, features a 16-position ID selector switch, and provides clear user interaction through labeled LEDs, push buttons, and a heartbeat indicator—all configurable via the Modbus master.
Product Certification
contact sales
Request information
Stefan Meun-Visser
+31 6 13 73 87 76

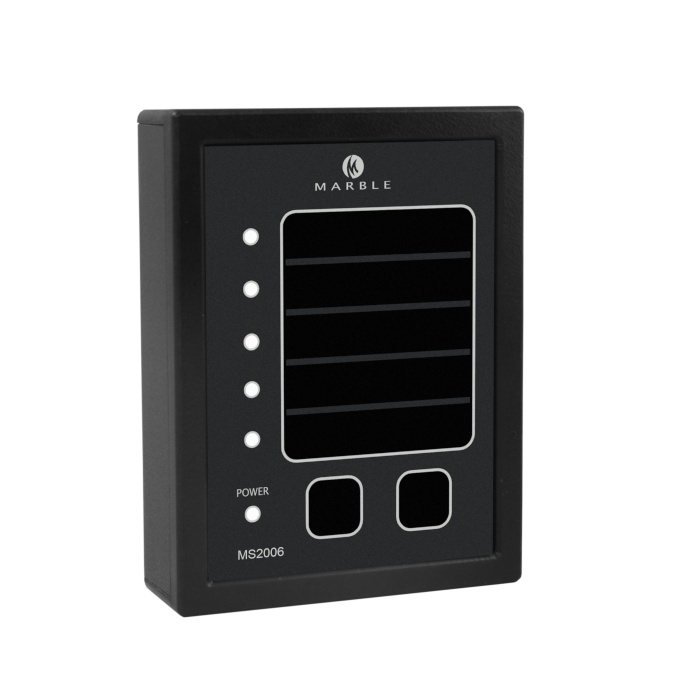

The MS2006 is a wall mount device to be used as an extension of an alarm system. Extensions are mostly needed for systems on ships with Unmanned Machinery Spaces(UMS) notations. The MS2006 communicates with the upper system via Modbus, whereby the extensions is Modbus slave. Multiple MS2006 units are connected in a multi drop RS485 configuration. The functionality of the MS2006 is completely determined by the Modbus Master. The MS2006 has a 16 way switch to set the slave number or slave ID and at the PCB there are four screw terminals available for incoming and outgoing power supply and the same for the RS485 connections. The front of the MS2006 has 5 red LEDs next to a space for text labels, two push button and a green power or heartbeat LED. The front of the unit has a space for a text sheet to indicate the texts next to the LEDs and the functions of the push buttons.
