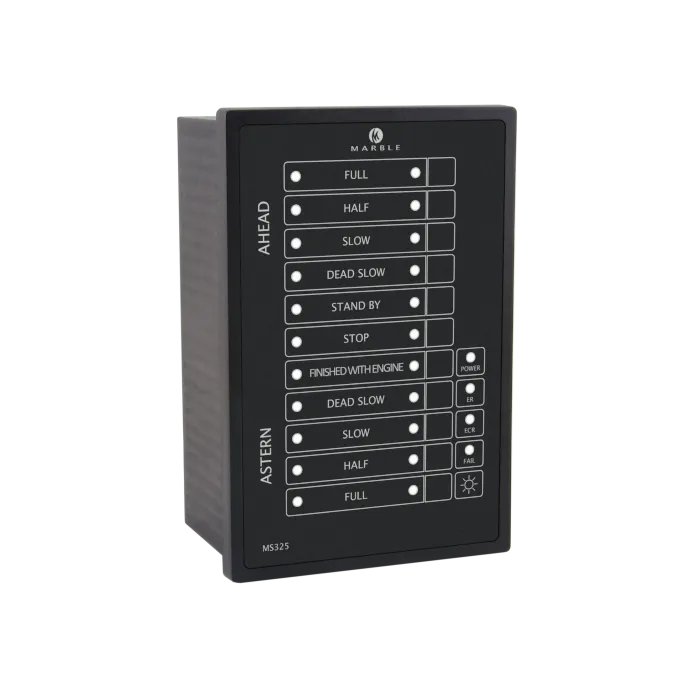

MS325B – Emergency telegraph

Marble Automation has developed a Lloyd’s Register and Bureau Veritas type approved Emergency Telegraph. The MS325B is designed specifically to give commands if the regular system fails. Commands for the bridge are transmitted to the engine room through the MS325B.

Product Certification

  • Bureau Veritas
  • lloyd's register

Want to know more about the MS325B – Emergency telegraph?

Leave your details and we'll contact you

Stefan Meun-Visser

Or contact Stefan Meun-Visser directly

+31 6 13 73 87 76 sales@marbleautomation.com

More about the MS325B – Emergency telegraph

The MS325B Emergency Telegraph, Lloyds Register approved, ensures bridge-to-engine room communication in emergencies. With Modbus communication, built-in buzzer, potential-free contact, and VDR integration, it keeps bridge orders reaching the engine room when the regular system fails. A three-unit setup is also possible, which reduces cabling and makes installation easier.

Advantages

  • Continued operation in case of lost control over the motor/pitch
  • Compact design and a clear and large LED display
  • Zero reset on the front
  • Simple alarm setting

Features

  • 11 positions (9 commands / 2 signals)
  • Position indication by LEDs

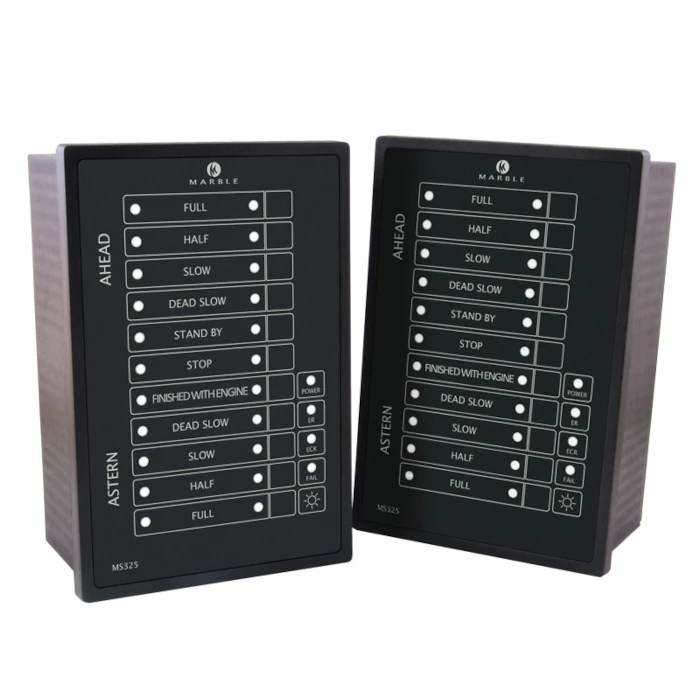

  • 2 units system (bridge & engine room)
  • One bridge unit with up to two engine room units
  • Two wire bus connection between the units (Modbus RTU)
  • Can be easily connected to a Voyage Data Recorder
  • Dimensions 96x144x60mm (WxHxD)
  • cut out: 91x139x60mm (WxHxD)
  • Power supply 24Vdc
