MF Series 1-2 Zone Conventional Fire Alarm

A conventional fire alarm system for ships, for detecting and reporting fire. Built from durable materials, in versions for 1 or 2 zones.

Want to know more about the MF Series 1-2 Zone Conventional Fire Alarm?

Leave your details and we'll contact you

Stefan Meun-Visser

Or contact Stefan Meun-Visser directly

+31 6 13 73 87 76 sales@marbleautomation.com

More about the MF Series 1-2 Zone Conventional Fire Alarm

Our Conventional Fire Alarm System series is engineered specifically for the demanding conditions of maritime environments, combining robust performance with intuitive operation. Designed to safeguard critical areas such as engine rooms, cabins, and control spaces, these systems provide proven fire detection and early alert capabilities when it matters most.

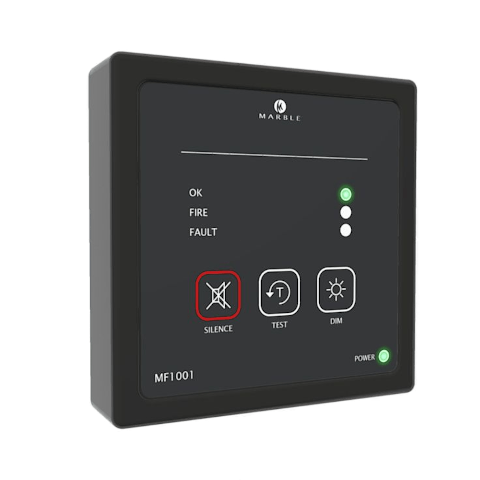

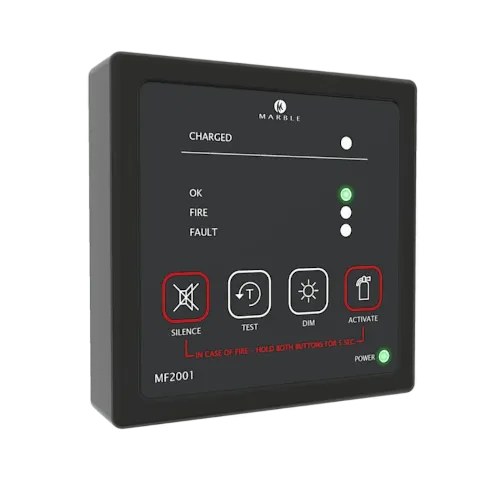

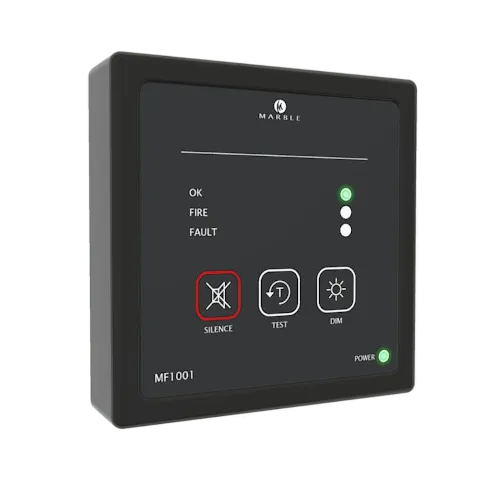

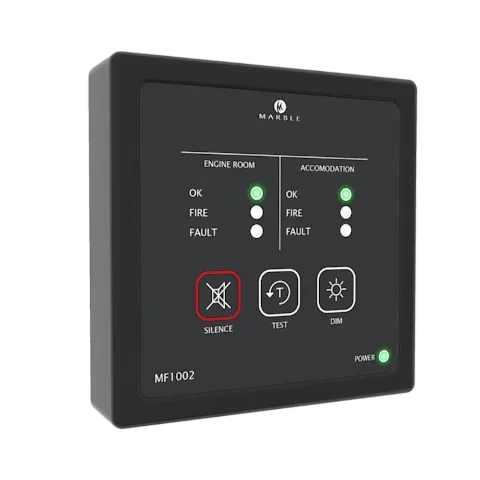

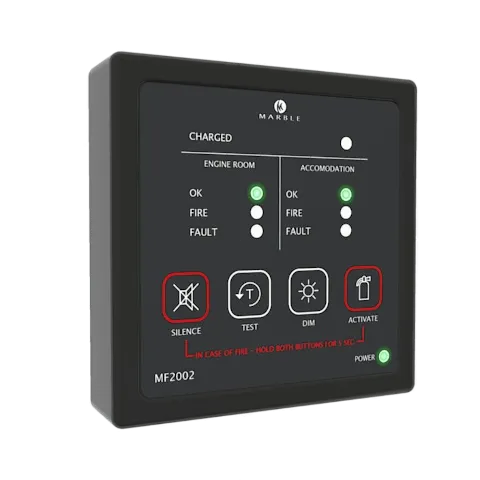

For one or two zones there are compact local panels, such as the MF1001, MF1002, MF2001 and MF2002. They are made of corrosion-resistant materials, with clear status indicators and simple test and reset functions.

Advantages

  • Zone-based fire detection (1 to 2 zones depending on model)
  • Visual and audible indicators for Fire, Fault, and Power
  • Dedicated engine room and accommodation monitoring on dual-zone units
  • Emergency activation via dual-button hold on actuator models (MFA-series)

Features

  • Construction 1.2mm sheet steel,IP30
  • 9-30 Vdc Supply voltage
  • 10 mA Minimum Alarm Current
  • 320 mA Maximum Current per Zone (Including EOL)
  • N.O @ 1A Siren/Buzzer output & Extinguisher Output
  • Front dimensions: 93x93x25 mm
  • Maximum 8 sensors per zone
  • Must use 5K6 EOL resistor
