MS2006-WM – UMS Extension

The MS2006-WM is a UMS extension for alarm systems on ships with an unmanned engine room. It shows alarms in places like the cabins, the mess and the engine room entrance, and the engineer on duty responds with the push buttons. All functions can be read or controlled via Modbus.

Product Certification

  • Bureau Veritas

Want to know more about the MS2006-WM – UMS Extension?

Leave your details and we'll contact you

Stefan Meun-Visser

Or contact Stefan Meun-Visser directly

+31 6 13 73 87 76 sales@marbleautomation.com

More about the MS2006-WM – UMS Extension

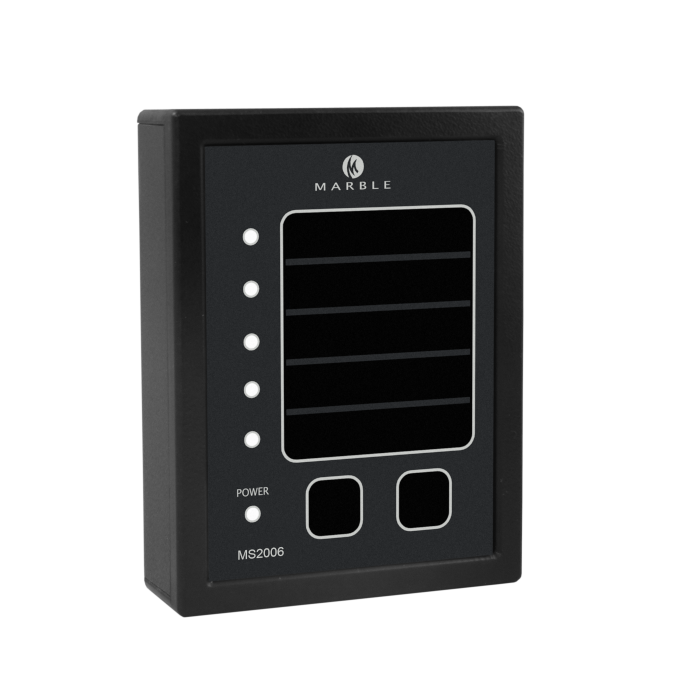

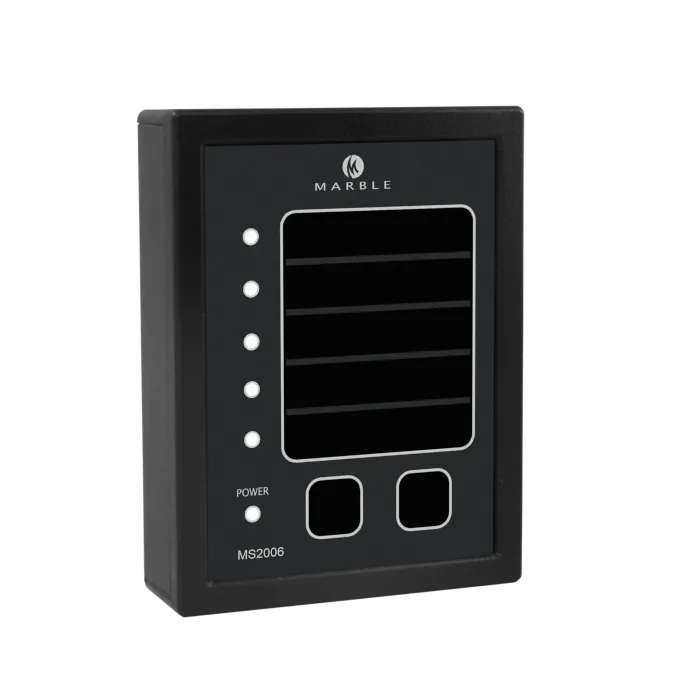

The MS2006-WM is a UMS extension for an alarm system. Extensions like this are mostly needed on ships with a UMS (Unmanned Machinery Space) notation. All functions can be read or controlled via Modbus, and several units can be connected on one cable. The unit ID is set with a potentiometer. The front has five red LEDs with a slide-in text sheet, two push buttons and a green LED that shows the unit is powered and working.

Advantages

  • Connects to the alarm system via Modbus
  • Several units on one cable
  • Clear LEDs and push buttons

Features

  • Alarm extension
  • Cabin and mess extension
  • Engine room entrance
  • Slide-in window for text
  • Modbus connection
