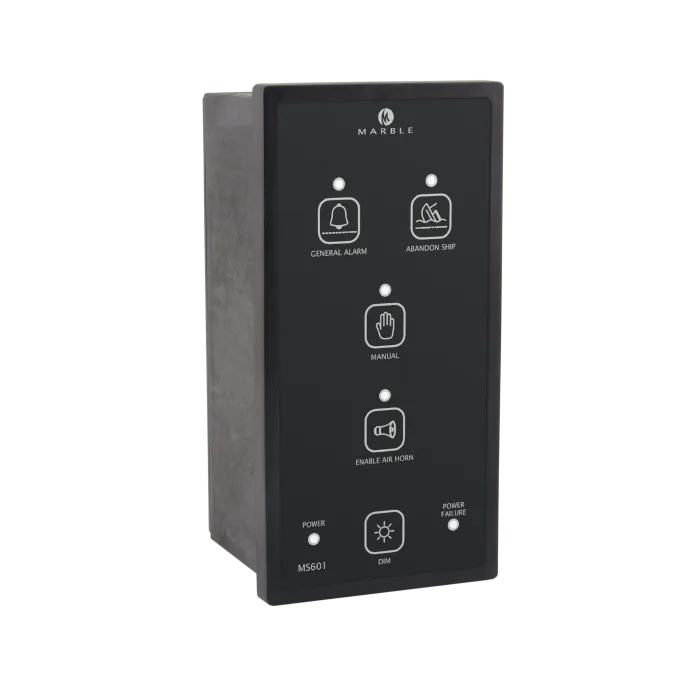

MS601B – Signal Generator

The MS601B signal generator gives the alarm signals on sea-going vessels and is mounted on the bridge.

Product Certification

  • Bureau Veritas

Want to know more about the MS601B – Signal Generator?

Leave your details and we'll contact you

Stefan Meun-Visser

Or contact Stefan Meun-Visser directly

+31 6 13 73 87 76 sales@marbleautomation.com

More about the MS601B – Signal Generator

The MS601B Signal Generator has dimmable backlight for use in night conditions.  The device generates signals of different forms according to the IMO rules as described in Code on Alerts and  Indicators 2009. The MS601B Signal Generator works in cooperation with the PA system and the entertainment system.  The MS601B has a standard DIN housing of 144 x 64 mm. For redundancy, it is possible to connect two different  power sources. The main power source is 24 V DC and the secondary power source is 24V DC from the  batteries. An alarm is generated when one of these power supplies has failed.
The two power sources are merged to create the power for the Alarm Bells output. Also the power supply for  the system itself is taken from this source.

Advantages

  • General alarm and abandon ship functions ensure critical notifications.
  • Direct operation of alarms and air horn when needed.
  • Mutes entertainment and PA system for clear announcements.
  • Backlight dim control for better readability in various conditions.
  • Supports signal column integration for broader alarm indication.
  • Redundant power supply

Features

  • Power supply: 24 V DC nominal, redundant
  • Power consumption 2 Watt
  • Signal outputs
    • Direct 24 V NO/2A and dry contact
    • Mute entertainment
    • Signal column
    • Air horn
  • Inputs
    • General alarm request
    • Manual air horn
    • PA mute request
    • General alarm manual
    • Fire alarm request
  • VDR output:  NMEA 0183 over RS485
