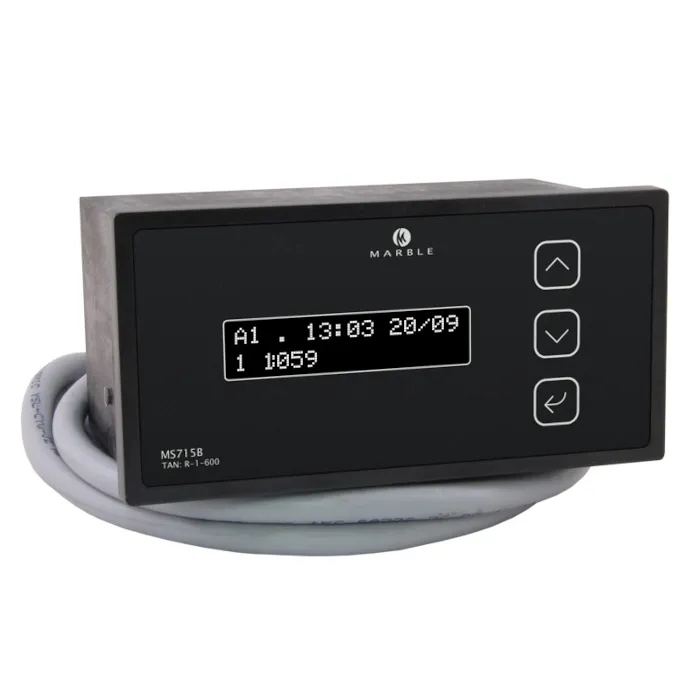

MS715B tachograph front panel with display and navigation buttons

MS715B – Tachograph

The MS715 is an officially approved tachograph designed for vessels with up to three propellers, ensuring accurate time registration and stable performance. It’s available in two certified versions to match your regulatory requirements:

  • MS715B – Certified by the Fachstelle der WSV für Verkehrstechniken (FVT) under R-1-600, and compliant with CCNR regulations.
  • MS725 (MS715) – Certified by the RDW under RDW-87240001-00, for when RDW certification is required instead.

Simply choose the version that matches the certification required for your vessel.

Product Certification

  • WSV
  • RDW erkend

Want to know more about the MS715B – Tachograph?

Leave your details and we'll contact you

Stefan Meun-Visser

Or contact Stefan Meun-Visser directly

+31 6 13 73 87 76 sales@marbleautomation.com

More about the MS715B – Tachograph

The MS715 is a certified tachograph, available in two versions depending on the certification required for your vessel.

The MS715B is approved by the Fachstelle der WSV für Verkehrstechniken (FVT) and compliant with Central Commission for the Navigation of the Rhine (CCNR) regulations, holding type approval number R-1-600. Sailing times are recorded accurately, as the official rules require.

Alternatively, the MS725 (MS715) version is certified by the RDW under type approval number RDW-87240001-00, for when RDW certification is required instead.

Both versions share the same compact design, easy installation, and external printer connectivity, making them a dependable solution for accurate sailing time registration.

Advantages

  • Only one appliance for a maximum of three propellers
  • Easy to use
  • Memory for the registration of past sailing time details
  • Very compact

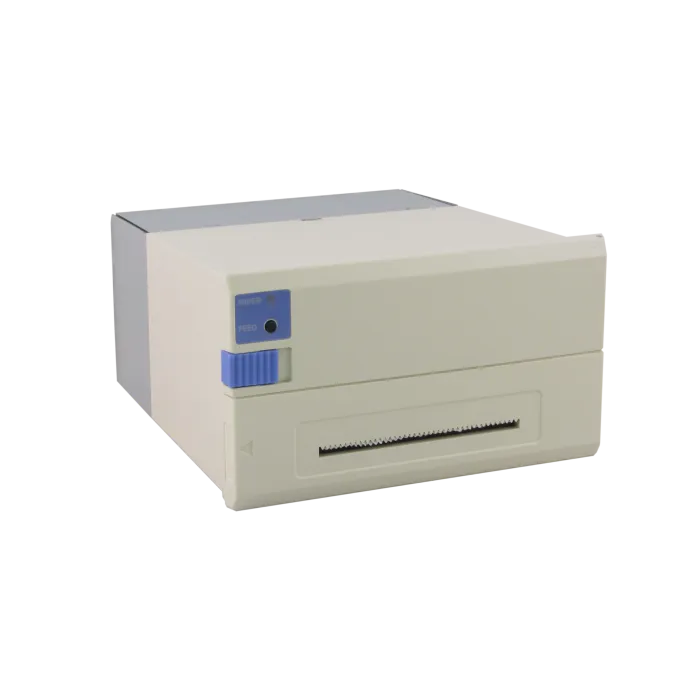

  • External printer connection
  • Can be installed easily thanks to the supplied connection cable

Features

  • Dimensions: 144x72x110 (WxHxD)
  • Cut out: 138×68 (WxH)
  • Power supply: 18-36 Vdc
  • Current: 145 mA max
  • Maximum propellers: 3
  • Power output sensors: 24Vdc
  • Signal sensors: NPN and PNP
  • Power output printer: 5Vdc
  • Printer Interface: Serial RS 232
  • EEPROM time registration:16Kb
  • Number of registrations: 2700
  • Certified by RDW
